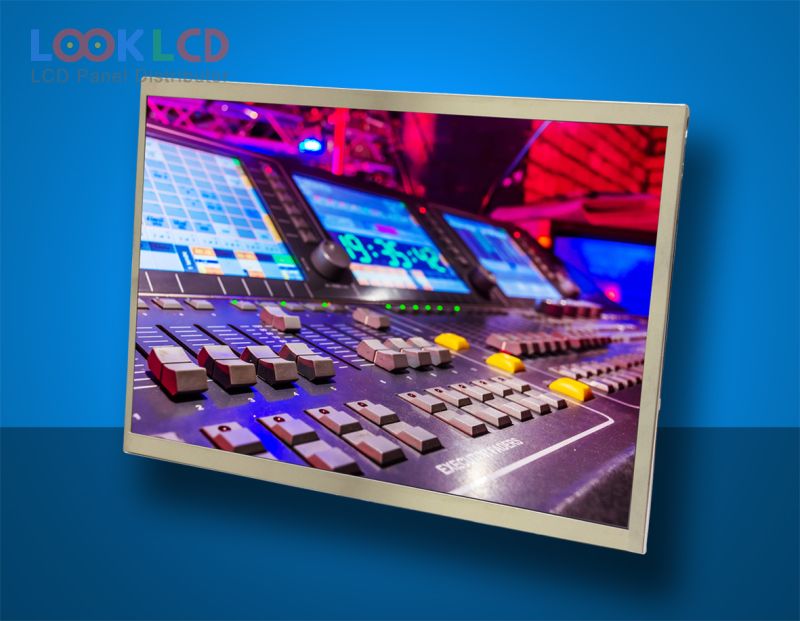

| Artikelnummer | TX26D202VM0BAA |
| varumärke | KOE |
| Storlek | 10.1 |
| Ansökan | IA |
| Upplösning | 1920×1200 |
| Sammansättning | LCM |
| Ljusstyrka | 800 |
| CR | 800:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | KOE |
| panelmodell | TX26D202VM0BAA |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 10.1 inch |
| upplösning | 1920(RGB)×1200 , WUXGA |
| visningsläge | IPS, Normally Black, Transmissive |
| aktivt område | 217.44×135.9 mm |
| skissera | 232.1×153.2×7.62 mm |
| yta | |
| ljusstyrka | 800 cd/m² (Typ.) |
| Kontrastförhållande | 800:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193155% |
| respons tid | 25 (Typ.)(Tr+Td) |
| betraktningsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (2 ch, 8-bit), 50 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | IA |
