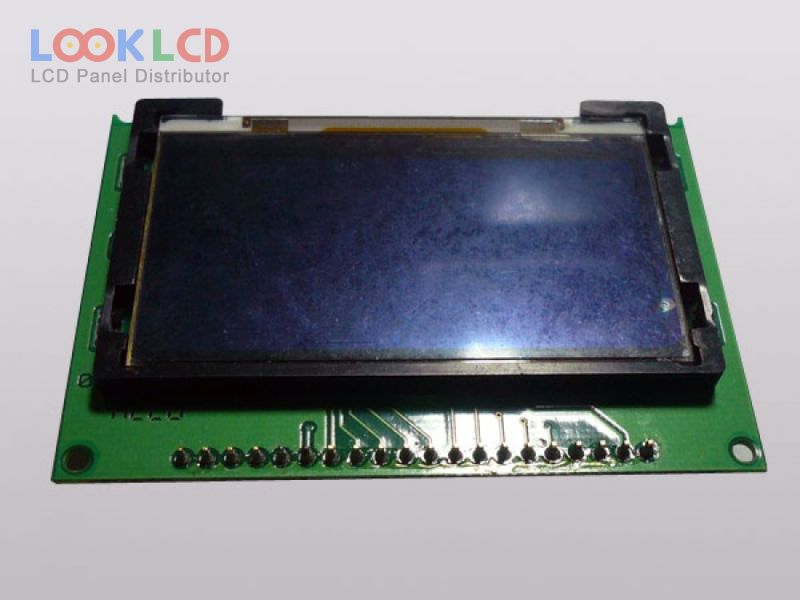

| Artikelnummer | RGS24128064YW005 |
| varumärke | RiTdisplay |
| Storlek | 2.4 |
| Ansökan | IA |
| Upplösning | 128×64 |
| Sammansättning | OLED |
| Ljusstyrka | 80 |
| CR | 2000:1 |
| Färger | Mono(Yellow) |
| Bakgrundsbelysning | self |
| Gränssnitt | CPU |
| panelmärke | RiTdisplay |
| panelmodell | RGS24128064YW005 |
| paneltyp | PM-OLED , OLED |
| panelstorlek | 2.4 inch |
| upplösning | 128×64 |
| aktivt område | 55.01×27.49 mm |
| skissera | 75×52.7×15.14 mm |
| yta | Antiglare |
| ljusstyrka | 80 cd/m² (Typ.) |
| Kontrastförhållande | 2000 : 1 (Min.) |
| visa färger | Mono(Yellow) (1-bit) |
| betraktningsvinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvens | 105Hz |
| drivrutin ic | Built-in SSD1303T10 |
| signalgränssnitt | CPU, 20 pins |
| inspänning | 3.3/2.7V (Typ.)(Vbat/VDD) |
| Ansökan | IA |
