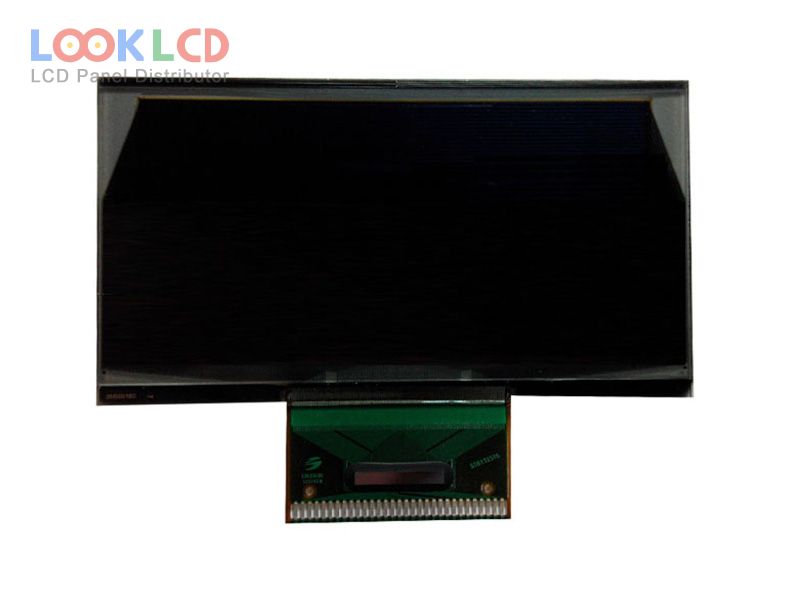

| Artikelnummer | OEL9M5001-R-E |
| varumärke | Other |
| Storlek | 2.7 |
| Ansökan | |
| Upplösning | 128×64 |
| Sammansättning | OLED |
| Ljusstyrka | |
| CR | 10000:1 |
| Färger | Grayscale(R) |
| Bakgrundsbelysning | self |
| Gränssnitt | CPU/SPI |
| panelmärke | TRULY |
| panelmodell | OEL9M5001-R-E |
| paneltyp | PM-OLED , OLED |
| panelstorlek | 2.7 inch |
| upplösning | 128×64 |
| aktivt område | 61.41×30.69 mm |
| skissera | 73×40.24×2.15 mm |
| yta | |
| ljusstyrka | |
| Kontrastförhållande | 10000 : 1 (Min.) |
| visa färger | Grayscale(R) (4-bit) |
| betraktningsvinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvens | 100Hz |
| drivrutin ic | TAB Built-in SSD1325T6R1 |
| signalgränssnitt | 8-bit 6800/8080 parallel, SPI, 30 pins |
| inspänning | 3.0/13.0V (Typ.)(VDD/VCC) |
