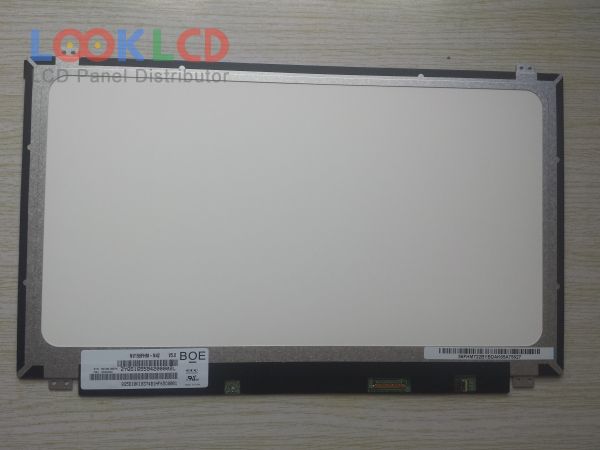

| Artikelnummer | NV156FHM-N42 |
| varumärke | BOE |
| Storlek | 15.6 |
| Ansökan | NBPC |
| Upplösning | 1920×1080 |
| Sammansättning | LCM |
| Ljusstyrka | 250 |
| CR | 800:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | eDP |
| panelmärke | BOE |

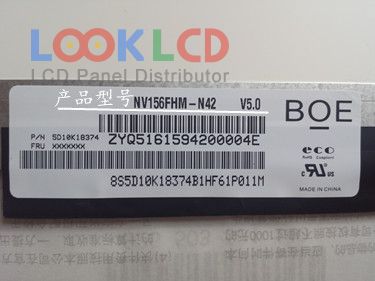

| panelmodell | NV156FHM-N42 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.6 inch |
| upplösning | 1920(RGB)×1080 , FHD |
| visningsläge | ADS, Normally Black, Transmissive |
| aktivt område | 334.16×193.59 mm |
| skissera | 359.5×223.8×3.2 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| yta | Antiglare |
| ljusstyrka | 250 cd/m² (Typ.) |
| Kontrastförhållande | 800:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193147% |
| respons tid | 30 (Typ.)(Tr+Td) |
| betraktningsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 9S5PWLEDEmbedded (LED Driver) |

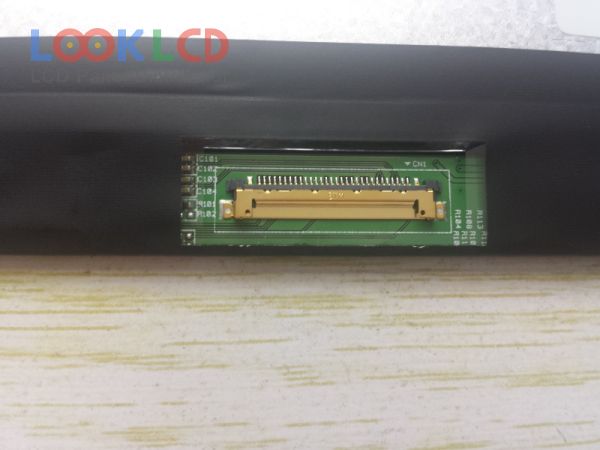

| signalgränssnitt | eDP (2 Lanes), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
