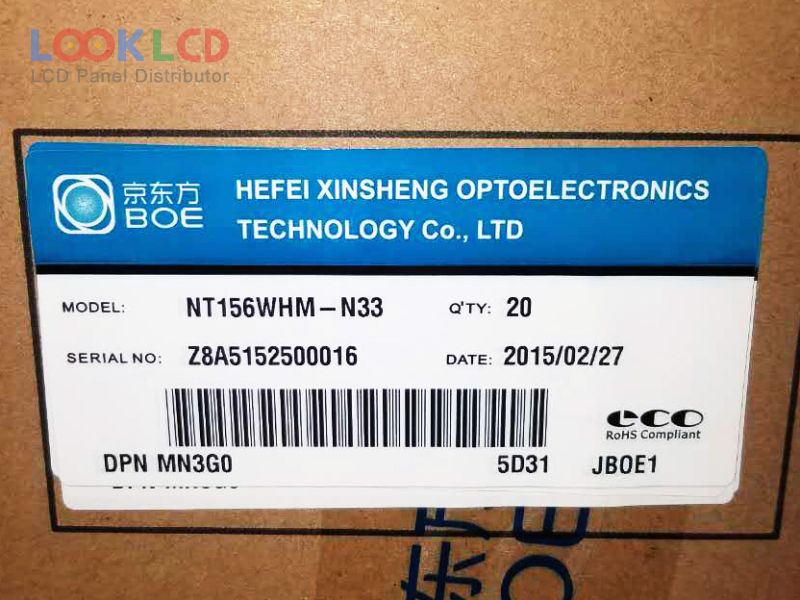

| Artikelnummer | NT156WHM-N33 |
| varumärke | BOE |
| Storlek | 15.6 |
| Ansökan | NBPC |
| Upplösning | 1366×768 |
| Sammansättning | LCM |
| Ljusstyrka | 220 |
| CR | 500:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | eDP |
| panelmärke | BOE |
| panelmodell | NT156WHM-N33 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.6 inch |
| upplösning | 1366(RGB)×768 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| skissera | 366.38×223.8×3.2 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| yta | Glare (Haze 0%) |
| ljusstyrka | 220 cd/m² (Typ.) |
| Kontrastförhållande | 500:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193145% |
| respons tid | 12 (Typ.)(Tr+Td) |
| betraktningsvinkel | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 9S4PWLEDEmbedded (LED Driver) |
| signalgränssnitt | eDP (1 Lane), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
| CLAA156WA11A | CPT | 15.6 | 1366×768 |
| LP156WF1-TLF4 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SLB1 | LG Display | 15.6 | 1920×1080 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| NT156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NT156WHM-N10 | BOE | 15.6 | 1366×768 |
| NT156WHM-N12 | BOE | 15.6 | 1366×768 |
| NT156WHM-N33 | BOE | 15.6 | 1366×768 |
| NT156WHM-N42 | BOE | 15.6 | 1366×768 |
| NT156WHM-N50 | BOE | 15.6 | 1366×768 |
| B154EW01 V8 | AUO | 15.4 | 1280×800 |
| B170PW03 V1 | AUO | 17.0 | 1440×900 |
| FLC31SVC6S-17 | Fujitsu | 12.1 | 800×600 |
| L141X1-1 | AUO | 14.1 | 1024×768 |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WH4-TPP1 | LG Display | 15.6 | 1366×768 |
| LP173WD1-TLC2 | LG Display | 17.3 | 1600×900 |
| LTN156AT01-B01 | Samsung | 15.6 | 1366×768 |
| N141C1-L02 | Innolux | 14.1 | 1440×900 |
| TX39D80VC1GAA | KOE | 15.4 | 1280×800 |
