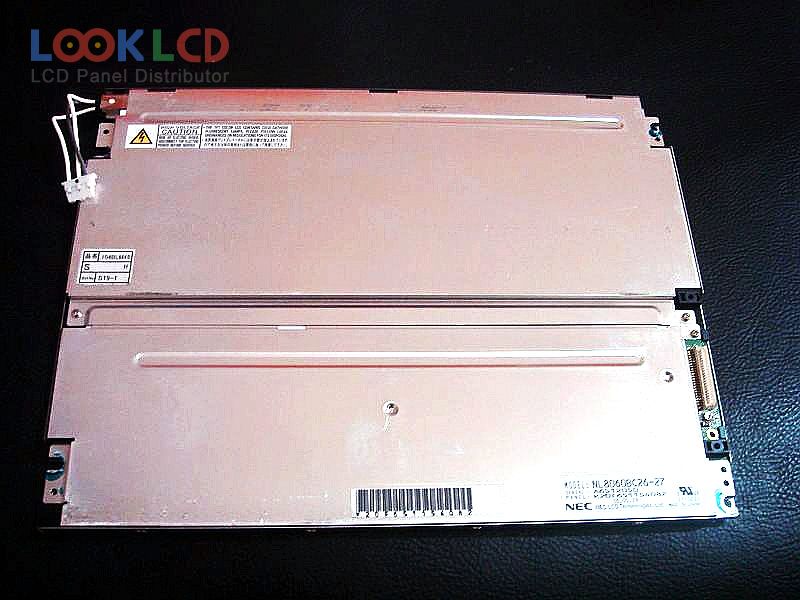

| Artikelnummer | NL6448BC26-27 |
| varumärke | NLT |
| Storlek | 8.4 |
| Ansökan | IA |
| Upplösning | 640×480 |
| Sammansättning | LCM |
| Ljusstyrka | 500 |
| CR | 1000:1 |
| Färger | 262K/16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | NEC |
| panelmodell | NL6448BC26-27 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 8.4 inch |
| upplösning | 640(RGB)×480 , VGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 170.88×128.16 mm |
| skissera | 200×152 mm |
| yta | Clear, Hard coating (3H) |
| ljusstyrka | 500 cd/m² (Typ.) |
| Kontrastförhållande | 1000:1 (Typ.) |
| visa färger | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| respons tid | 3/15 (Typ.)(Tr/Td) |
| betraktningsvinkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 3 stringsWLEDWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6/8-bit), 20 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | IA |
