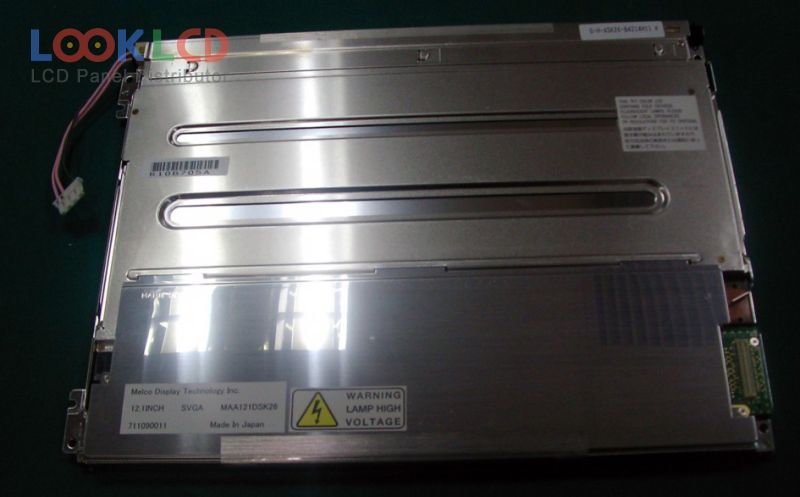

| Artikelnummer | MAA121DSK26 |
| varumärke | Mitsubishi |
| Storlek | 12.1 |
| Ansökan | IA |
| Upplösning | 800×600 |
| Sammansättning | LCM |
| Ljusstyrka | 300 |
| CR | 300:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | TTL |
| panelmärke | Mitsubishi MDTI |
| panelmodell | MAA121DSK26 2 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 12.1 inch |
| upplösning | 800(RGB)×600 , SVGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 246×184.5 mm |
| skissera | 280×210×12.5 mm |
| yta | Antiglare, Hard coating (3H) |
| ljusstyrka | 300 cd/m² (Typ.) |
| Kontrastförhållande | 300:1 (Typ.) |
| visa färger | 262K (6-bit) |
| respons tid | 20/30 (Typ.)(Tr/Td) |
| betraktningsvinkel | 60/60/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 2 pcsCCFLWithout Driver |
| signalgränssnitt | CMOS (1 ch, 6-bit), 41 pins |
| inspänning | 3.3/5.0V (Typ.)(VCC) |
| Ansökan | IA |
| AA121SK26 | Mitsubishi | 12.1 | 800×600 |
| AA121TD02 | Mitsubishi | 12.1 | 1280×800 |
| B121EW03 V6 | AUO | 12.1 | 1280×800 |
| L5S30341P00 | SANYO | 12.1 | 800×600 |
| LQ121S1LG51 | SHARP | 12.1 | 800×600 |
| LTM121SI-T01 | Samsung | 12.1 | 800×600 |
| LTN121X1-L02 | Samsung | 12.1 | 1024×768 |
| MAA121DSK26 | Mitsubishi | 12.1 | 800×600 |
| NL10276AC24-05 | NLT | 12.1 | 1024×768 |
| TM121SV-A01 | SANYO | 12.1 | 800×600 |
| AA084SD01 | Mitsubishi | 8.4 | 800×600 |
| AA090AA01 | Mitsubishi | 9.0 | 960×540 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| G101STN01.0 | AUO | 10.1 | 1024×600 |
| LB121S03-TL03 | LG Display | 12.1 | 800×600 |
| LQ084V1DG22 | SHARP | 8.4 | 640×480 |
| LTA057A347F | TOSHIBA | 5.7 | 320×240 |
| M101GWN9 R0 | IVO | 10.1 | 1024×600 |
| TM150TDSG70 | Tianma | 15.0 | 1024×768 |
| UG-6028GDEAF01 | WiseChip | 1.45 | 160×128 |
