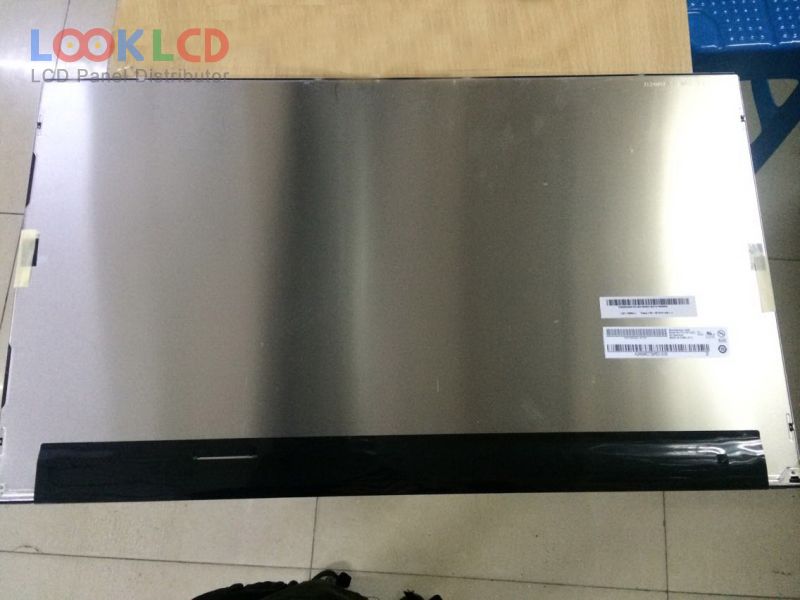

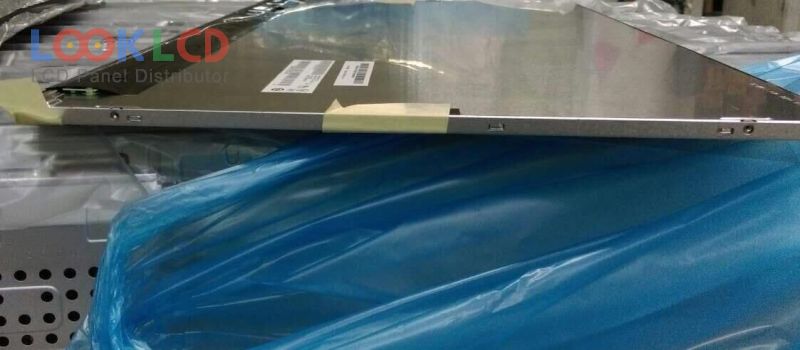

| Artikelnummer | M240HW02 V7 |
| varumärke | AUO |
| Storlek | 24.0 |
| Ansökan | DMPC |
| Upplösning | 1920×1080 |
| Sammansättning | LCM |
| Ljusstyrka | 250 |
| CR | 5000:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | AUO |
| panelmodell | M240HW02 V7 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 24.0 inch |
| upplösning | 1920(RGB)×1080 , FHD |
| visningsläge | VA, Normally Black, Transmissive |
| aktivt område | 531.36×298.89 mm |
| skissera | 556×323.2×9.6 mm |
| yta | Antiglare, Hard coating (3H) |
| ljusstyrka | 250 cd/m² (Typ.) |
| Kontrastförhållande | 5000:1 (Typ.) |
| visa färger | 16.7M (8-bit) |
| respons tid | 7/5 (Typ.)(Tr/Td) |
| betraktningsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 17S4PWLEDWithout Driver |
| signalgränssnitt | LVDS (2 ch, 8-bit), 30 pins |
| inspänning | 5.0V (Typ.) |
| Ansökan | DMPC |
