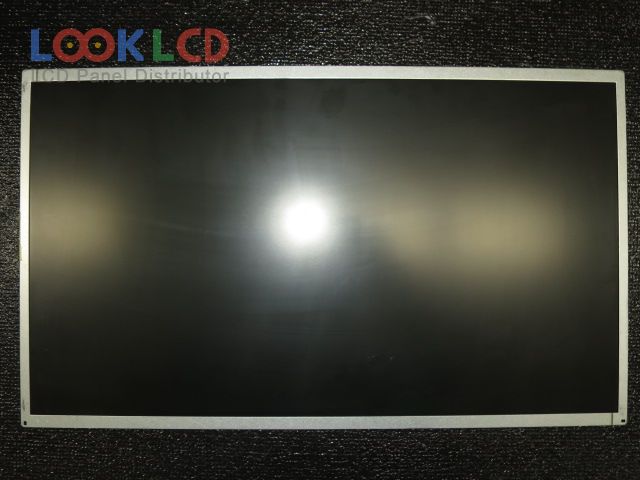

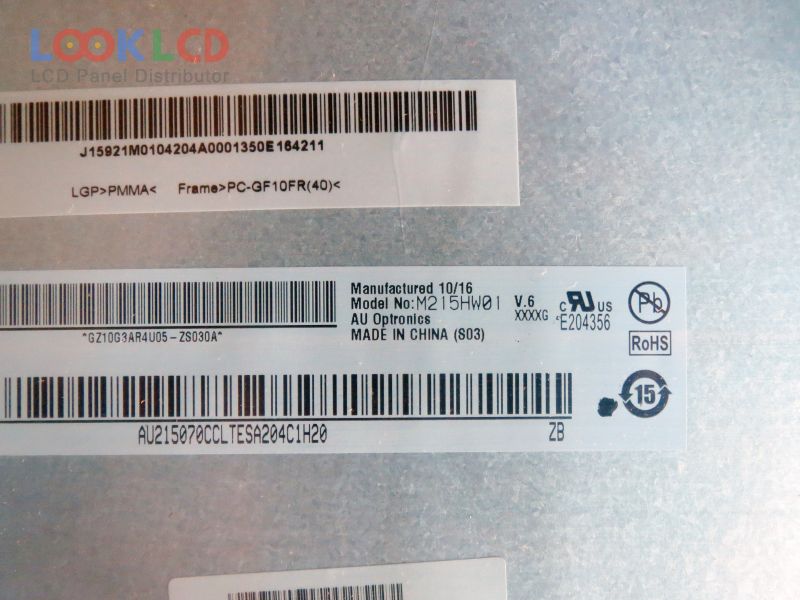

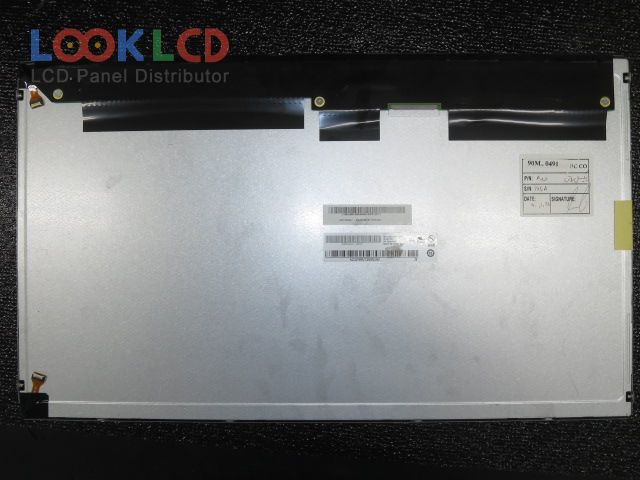

| Artikelnummer | M215HW01 V6 |
| varumärke | AUO |
| Storlek | 21.5 |
| Ansökan | DMPC |
| Upplösning | 1920×1080 |
| Sammansättning | LCM |
| Ljusstyrka | 250 |
| CR | 1000:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | AUO |
| panelmodell | M215HW01 V6 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 21.5 inch |
| upplösning | 1920(RGB)×1080 , FHD |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 476.64×268.11 mm |
| skissera | 495.6×292.2×10.7 mm |
| yta | Antiglare, Hard coating (3H) |
| ljusstyrka | 250 cd/m² (Typ.) |
| Kontrastförhållande | 1000:1 (Typ.) |
| visa färger | 16.7M (6-bit + Hi-FRC), CIE193168% |
| respons tid | 3.8/1.2 (Typ.)(Tr/Td) |
| betraktningsvinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 10S8P×2CNWLEDWithout Driver |
| signalgränssnitt | LVDS (2 ch, 8-bit), 30 pins |
| inspänning | 5.0V (Typ.) |
| Ansökan | DMPC |
