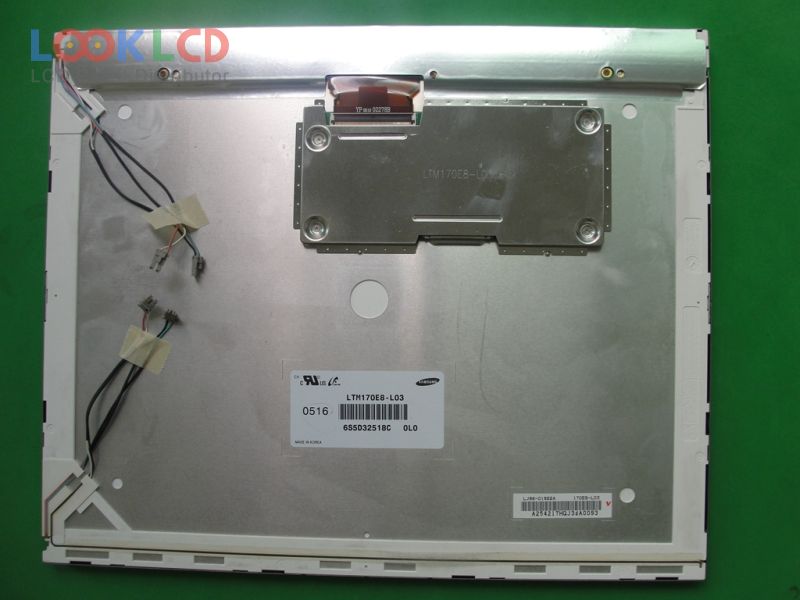

| Artikelnummer | LTM170E8-L03 |
| varumärke | Samsung |
| Storlek | 17.0 |
| Ansökan | DMPC |
| Upplösning | 1280×1024 |
| Sammansättning | LCM |
| Ljusstyrka | 280 |
| CR | 1500:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | SAMSUNG |
| panelmodell | LTM170E8-L03 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 17.0 inch |
| upplösning | 1280(RGB)×1024 , SXGA |
| visningsläge | PVA, Normally Black, Transmissive |
| aktivt område | 337.92×270.336 mm |
| skissera | 354.9×290.3×16.5 mm |
| yta | Antiglare (Haze 44%), Hard coating (3H) |
| ljusstyrka | 280 cd/m² (Typ.) |
| Kontrastförhållande | 1500:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193172% |
| respons tid | 14 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| betraktningsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 4 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (2 ch, 8-bit), 30 pins |
| inspänning | 5.0V (Typ.) |
| Ansökan | DMPC |
