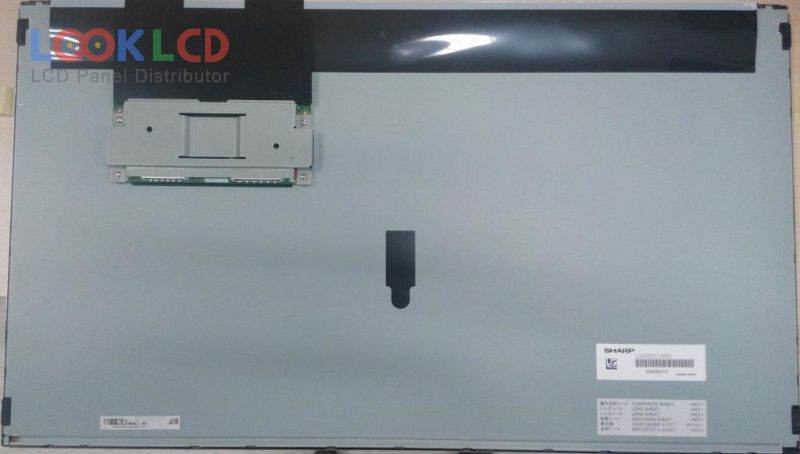

| Artikelnummer | LQ235D1LW03 |
| varumärke | SHARP |
| Storlek | 23.6 |
| Ansökan | IA |
| Upplösning | 1920×1080 |
| Sammansättning | LCM |
| Ljusstyrka | 400 |
| CR | 5000:1 |
| Färger | 1.07B |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | SHARP |
| panelmodell | LQ235D1LW03 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 23.6 inch |
| upplösning | 1920(RGB)×1080 , FHD |
| visningsläge | UV2A, Normally Black, Transmissive |
| aktivt område | 521.28×293.22 mm |
| skissera | 554.8×319×21.4 mm |
| yta | Antiglare (Haze 2%), Hard coating (3H) |
| ljusstyrka | 400 cd/m² (Typ.) |
| Kontrastförhållande | 5000:1 (Typ.) |
| visa färger | 1.07B (8-bit + Hi-FRC), CIE193172% |
| respons tid | 4 (Typ.)(G to G) |
| betraktningsvinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 120Hz |
| lamptyp | 13S4PWLEDWithout Driver |
| signalgränssnitt | LVDS (4 ch, 10-bit), 92 pins |
| inspänning | 12.0V (Typ.) |
| Ansökan | IA |
