| Artikelnummer | LQ156Z1JW03 |
| varumärke | SHARP |
| Storlek | 15.6 |
| Ansökan | NBPC |
| Upplösning | 3200×1800 |
| Sammansättning | LCM |
| Ljusstyrka | 400 |
| CR | 1000:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | eDP |
| panelmärke | SHARP |

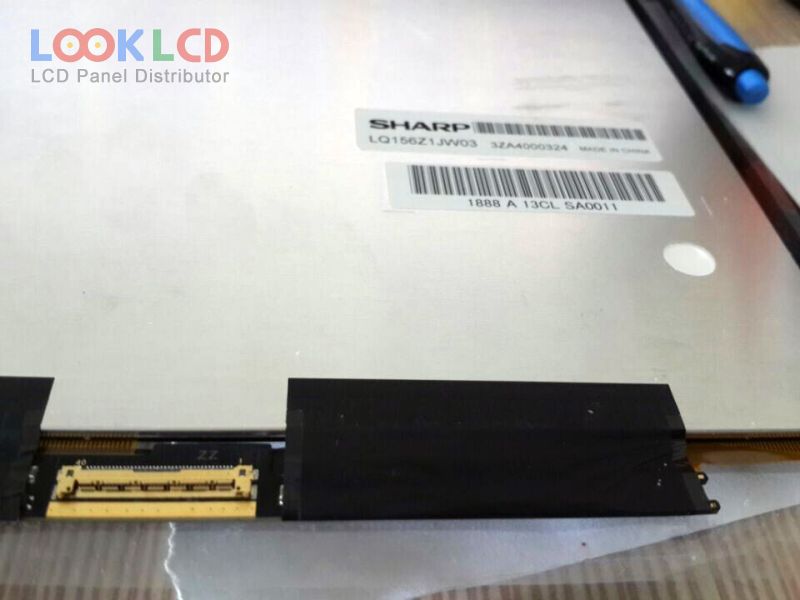

| panelmodell | LQ156Z1JW03 |
| paneltyp | IGZO TFT-LCD , LCM |
| panelstorlek | 15.6 inch |
| upplösning | 3200(RGB)×1800 , Quad-HD+ |
| visningsläge | New Mode2, Normally Black, Transmissive |
| aktivt område | 345.6×194.4 mm |
| skissera | 358.12×207.56×2.9 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| yta | Antiglare (Haze 42%) |
| ljusstyrka | 400 cd/m² (Typ.) |
| Kontrastförhållande | 1000:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193172% |
| respons tid | 25 (Typ.)(Tr+Td) |
| betraktningsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | eDP (4 Lanes), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
