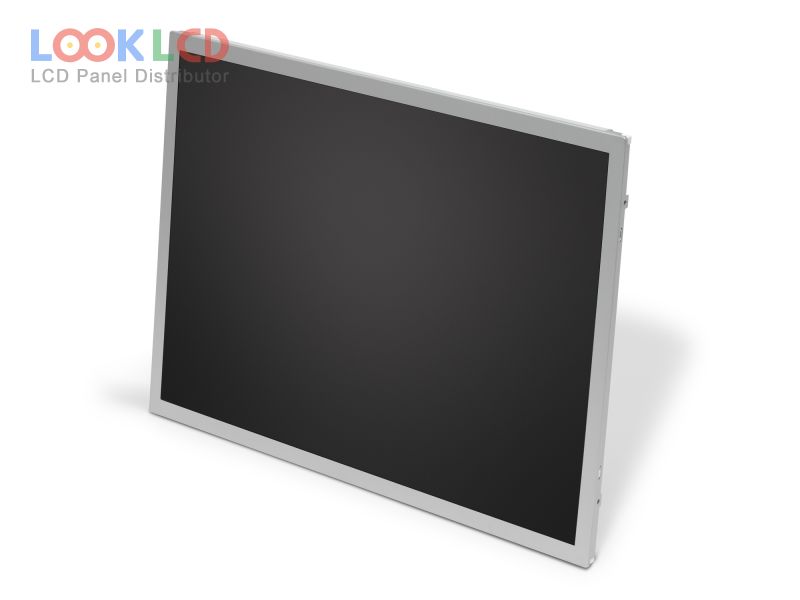

| Artikelnummer | LQ150X1LX95 |
| varumärke | SHARP |
| Storlek | 15.0 |
| Ansökan | IA |
| Upplösning | 1024×768 |
| Sammansättning | LCM |
| Ljusstyrka | 400 |
| CR | 1500:1 |
| Färger | 16.2M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | SHARP |
| panelmodell | LQ150X1LX95 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.0 inch |
| upplösning | 1024(RGB)×768 , XGA |
| visningsläge | ASV, Normally Black, Transmissive |
| aktivt område | 304.128×228.096 mm |
| skissera | 326.5×253.5×10.1 mm |
| yta | Antiglare (Haze 3%), Hard coating (3H) |
| ljusstyrka | 400 cd/m² (Typ.) |
| Kontrastförhållande | 1500:1 (Typ.) |
| visa färger | 16.2M (6-bit + FRC), CIE193170% |
| respons tid | 35 (Typ.)(Tr+Td) |
| betraktningsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (1 ch, 8-bit), 20 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | IA |
