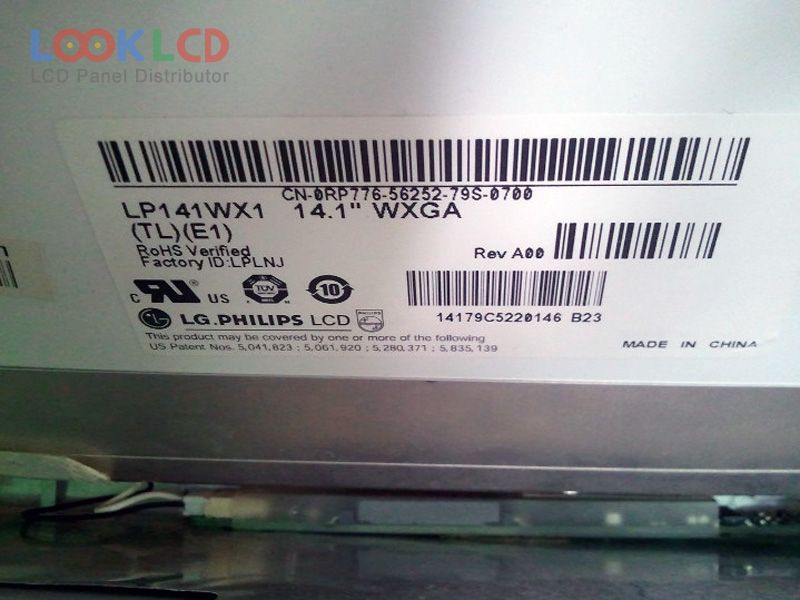

| Artikelnummer | LP141WX1-TLE1 |
| varumärke | LG Display |
| Storlek | 14.1 |
| Ansökan | NBPC |
| Upplösning | 1280×800 |
| Sammansättning | LCM |
| Ljusstyrka | 200 |
| CR | 300:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | LG.Philips LCD |
| panelmodell | LP141WX1-TLE1 9 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 14.1 inch |
| upplösning | 1280(RGB)×800 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 303.74×189.84 mm |
| skissera | 319.5×218×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Antiglare |
| ljusstyrka | 200 cd/m² (Min.) |
| Kontrastförhållande | 300:1 (Min.) |
| visa färger | 262K (6-bit), CIE193145% |
| respons tid | 5.5/10.5 (Typ.)(Tr/Td) |
| betraktningsvinkel | 40/40/15/35 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 1 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6-bit), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
