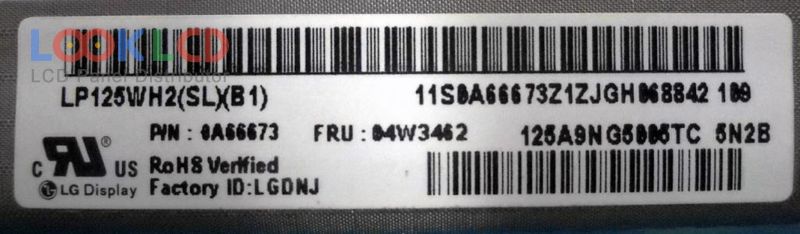

| Artikelnummer | LP125WH2-SLB1 |
| varumärke | LG Display |
| Storlek | 12.5 |
| Ansökan | PAD |
| Upplösning | 1366×768 |
| Sammansättning | LCM |
| Ljusstyrka | 300 |
| CR | 500:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | LG Display |
| panelmodell | LP125WH2-SLB1 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 12.5 inch |
| upplösning | 1366(RGB)×768 , WXGA |
| visningsläge | IPS, Normally Black, Transmissive |
| aktivt område | 275.59×154.94 mm |
| skissera | 300.4×180.9×3.7 mm |
| yta | Antiglare |
| ljusstyrka | 300 cd/m² (Typ.) |
| Kontrastförhållande | 500:1 (Min.) |
| visa färger | 262K (6-bit), CIE193150% |
| respons tid | 35 (Typ.)(Tr+Td) |
| betraktningsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (1 ch, 6-bit), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | PAD |
