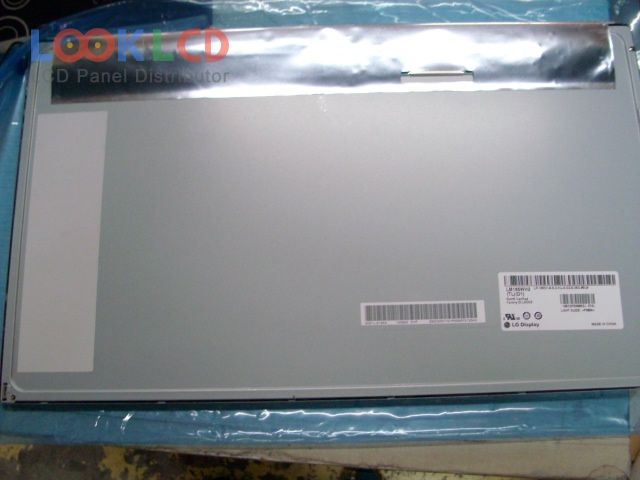

| Artikelnummer | LM185WH2-TLD1 |
| varumärke | LG Display |
| Storlek | 18.5 |
| Ansökan | DMPC |
| Upplösning | 1366×768 |
| Sammansättning | LCM |
| Ljusstyrka | 200 |
| CR | 600:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | LG Display |
| panelmodell | LM185WH2-TLD1 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 18.5 inch |
| upplösning | 1366(RGB)×768 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 409.8×230.4 mm |
| skissera | 430.4×254.6×10.7 mm |
| yta | Antiglare, Hard coating (3H) |
| ljusstyrka | 200 cd/m² (Typ.) |
| Kontrastförhållande | 600:1 (Typ.) |
| visa färger | 16.7M (6-bit + Hi-FRC) |
| respons tid | 1.1/3.9 (Typ.)(Tr/Td) |
| betraktningsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 11S2PWLEDWithout Driver |
| signalgränssnitt | LVDS (1 ch, 8-bit), 30 pins |
| inspänning | 5.0V (Typ.) |
| Ansökan | DMPC |
