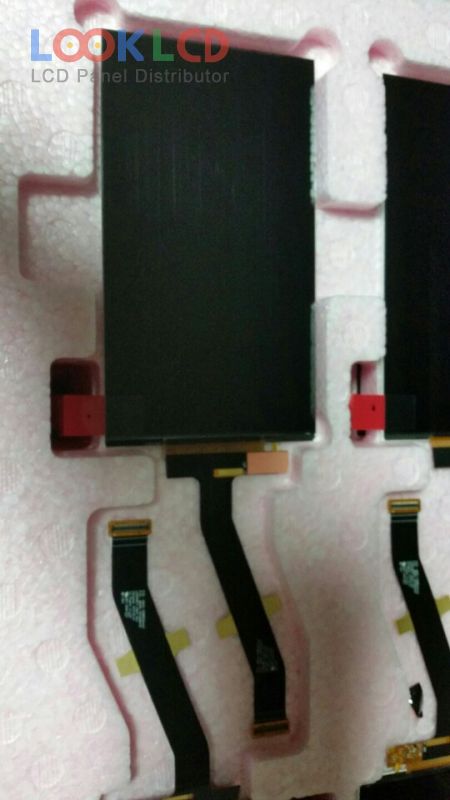

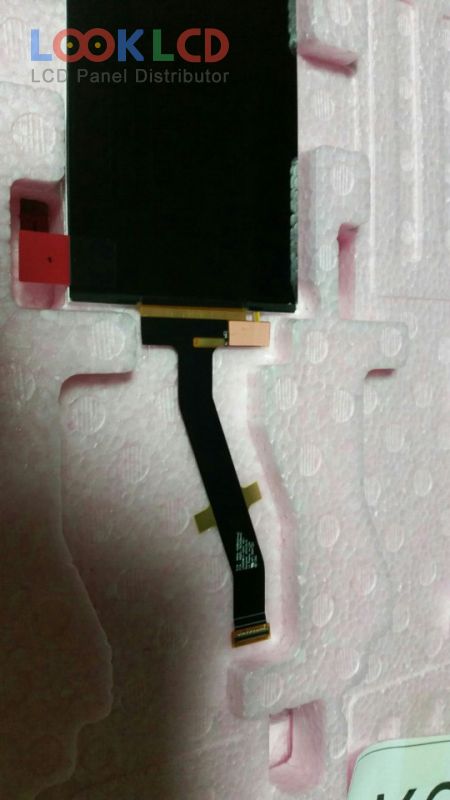

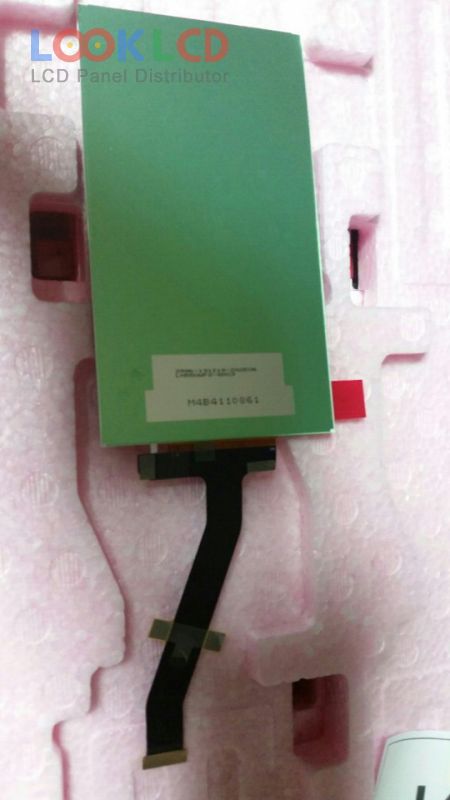

| Artikelnummer | LH550WF2-SD03 |
| varumärke | LG Display |
| Storlek | 5.5 |
| Ansökan | MPH |
| Upplösning | 1080×1920 |
| Sammansättning | LCM |
| Ljusstyrka | 460 |
| CR | 1000:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | MIPI |
| panelmärke | LG Display |
| panelmodell | LH550WF2-SD03 |
| paneltyp | LTPS TFT-LCD , LCM |
| panelstorlek | 5.5 inch |
| upplösning | 1080(RGB)×1920 , FHD |
| visningsläge | AH3-IPS, Normally Black, Transmissive |
| aktivt område | 68.04×120.96 mm |
| skissera | 70.94×128.01×1.55 mm |
| yta | |
| ljusstyrka | 460 cd/m² (Typ.) |
| Kontrastförhållande | 1000:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193170% |
| respons tid | 25 (Typ.)(Tr+Td) |
| betraktningsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 6S2PWLEDWithout Driver |
| signalgränssnitt | MIPI (4 data lanes), 50 pins |
| inspänning | 1.8/5.0/-5.0V (Typ.)(VDD/VAN/VPG) |
| Ansökan | MPH |
