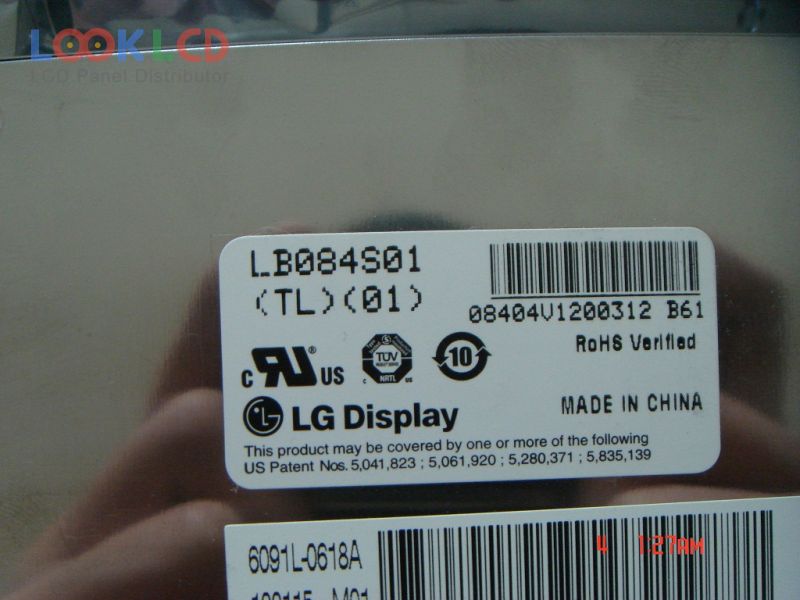

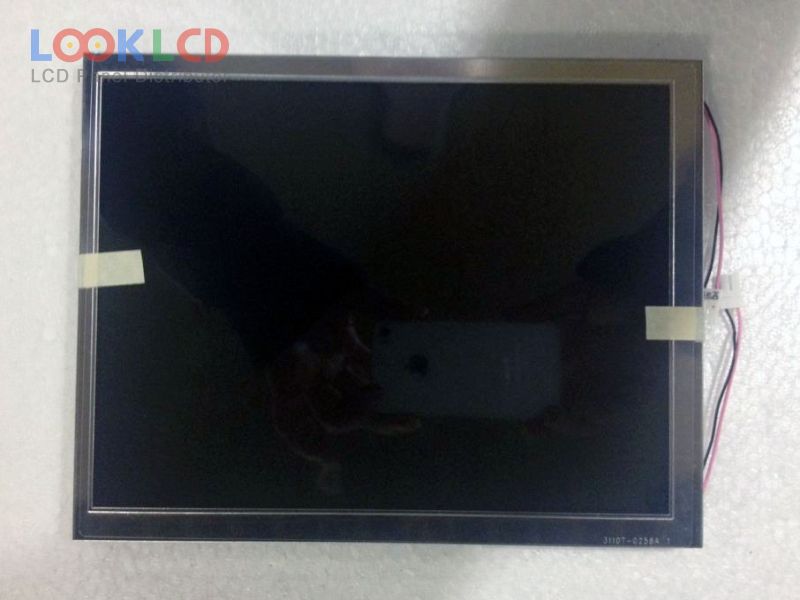

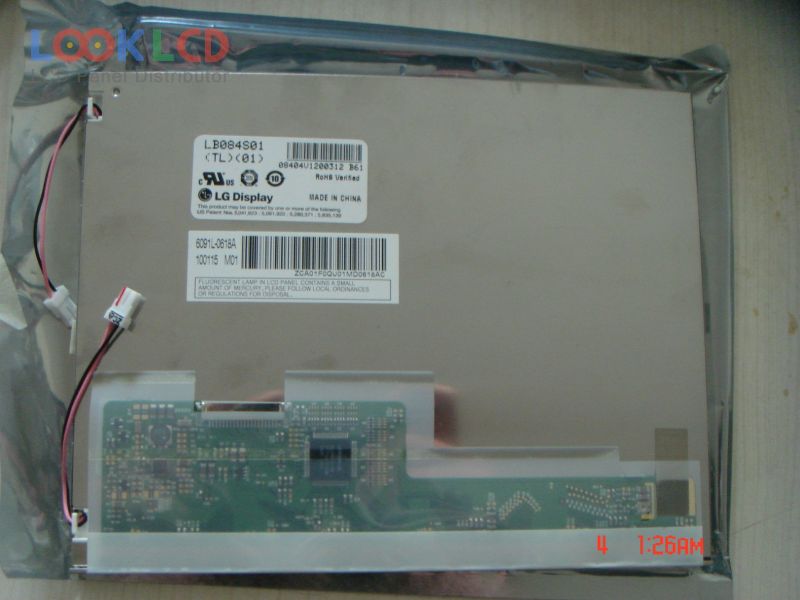

| Artikelnummer | LB084S01-TL01 |
| varumärke | LG Display |
| Storlek | 8.4 |
| Ansökan | IA |
| Upplösning | 800×600 |
| Sammansättning | LCM |
| Ljusstyrka | 600 |
| CR | 600:1 |
| Färger | 262K/16.7M |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | LG.Philips LCD |
| panelmodell | LB084S01-TL01 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 8.4 inch |
| upplösning | 800(RGB)×600 , SVGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 170.4×127.8 mm |
| skissera | 189.5×148.6×9.4 mm |
| yta | Antiglare, Hard coating (3H) |
| ljusstyrka | 600 cd/m² (Typ.) |
| Kontrastförhållande | 600:1 (Typ.) |
| visa färger | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193145% |
| respons tid | 7/18 (Typ.)(Tr/Td) |
| betraktningsvinkel | 75/75/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 2 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6/8-bit), 20 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | IA |
| AA084VB02 | Mitsubishi | 8.4 | 640×480 |
| HSD084ISN1-A01 | HannStar | 8.4 | 800×600 |
| LB084S01-TL01 | LG Display | 8.4 | 800×600 |
| LB084S02-TD01 | LG Display | 8.4 | 800×600 |
| LQ084S1DH10 | SHARP | 8.4 | 800×600 |
| LQ9D001 | SHARP | 8.4 | 640×480 |
| LQ9D03B | SHARP | 8.4 | 640×480 |
| LQ9D340 | SHARP | 8.4 | 640×480 |
| LTA084C270F | TOSHIBA | 8.4 | 800×600 |
| NL6448BC26-25 | NLT | 8.4 | 640×480 |
| AA104VC06 | Mitsubishi | 10.4 | 640×480 |
| AA121SU01 | Mitsubishi | 12.1 | 800×600 |
| AA121XK04 | Mitsubishi | 12.1 | 1024×768 |
| EL320.240.36 AG | Lumineq | 5.7 | 320×240 |
| LB150X02-TL01 | LG Display | 15.0 | 1024×768 |
| LM-CJ53-22NAK | SANYO | 10.4 | 640×480 |
| LQ104V1LG81 | SHARP | 10.4 | 640×480 |
| OEL9M0078-G-E | Other | 1.45 | 132×16 |
| TCG121XGLPAPNN-AN20 | Kyocera | 12.1 | 1024×768 |
| TM084SDHG01 | Tianma | 8.4 | 800×600 |
