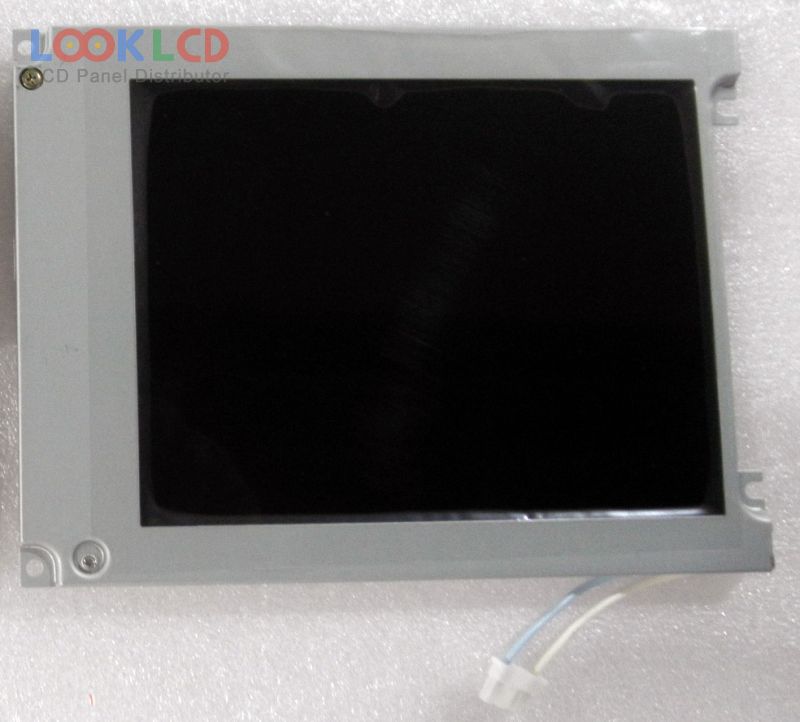

| Artikelnummer | KCS057QV1AJ-G20 |
| varumärke | Kyocera |
| Storlek | 5.7 |
| Ansökan | IA |
| Upplösning | 320×240 |
| Sammansättning | LCM |
| Ljusstyrka | 200 |
| CR | 40:1 |
| Färger | Color |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | Parallel Data |
| panelmärke | Kyocera |
| panelmodell | KCS057QV1AJ-G20 |
| paneltyp | CSTN-LCD , LCM |
| panelstorlek | 5.7 inch |
| upplösning | 320(RGB)×240 , QVGA |
| visningsläge | STN, Normally Black, Transmissive |
| aktivt område | 115.2×86.4 mm |
| skissera | 154.6×114.8×9 mm |
| yta | Glare (Haze 0%) |
| ljusstyrka | 200 cd/m² (Typ.) |
| Kontrastförhållande | 40:1 (Typ.) |
| visa färger | Color |
| respons tid | 220/110 (Typ.)(Tr/Td) |
| betraktningsvinkel | 50/50/30/30 (Typ.)(CR≥2)(L/R/U/D) |
| frekvens | 75Hz |
| lamptyp | 1 pcsCCFLOptional |
| signalgränssnitt | Parallel Data (8-bit), 15 pins |
| inspänning | 5.0V (Typ.) |
| Ansökan | IA |
