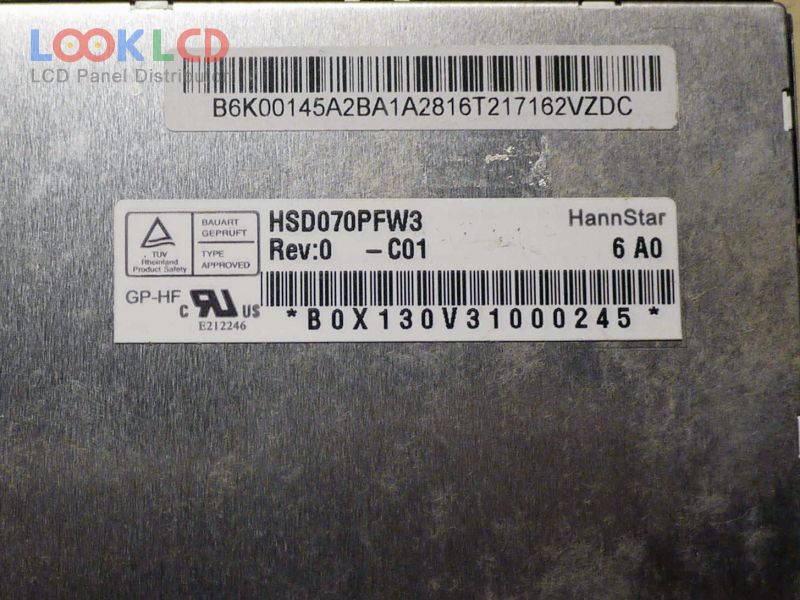

| Artikelnummer | HSD070PFW3-C01 |
| varumärke | HannStar |
| Storlek | 7.0 |
| Ansökan | CNS |
| Upplösning | 1024×600 |
| Sammansättning | LCM |
| Ljusstyrka | 600 |
| CR | 800:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | HannStar |
| panelmodell | HSD070PFW3-C01 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 7.0 inch |
| upplösning | 1024(RGB)×600 , WSVGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 153.6×90 mm |
| skissera | 164.4×102.2×6 mm |
| yta | Hard coating |
| ljusstyrka | 600 cd/m² (Typ.) |
| Kontrastförhållande | 800:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193150% |
| respons tid | 4/12 (Typ.)(Tr/Td) |
| betraktningsvinkel | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 3S8PWLEDWithout Driver |
| signalgränssnitt | LVDS (1 ch, 8-bit), 40 pins |
| inspänning | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VHL) |
| Ansökan | CNS |
