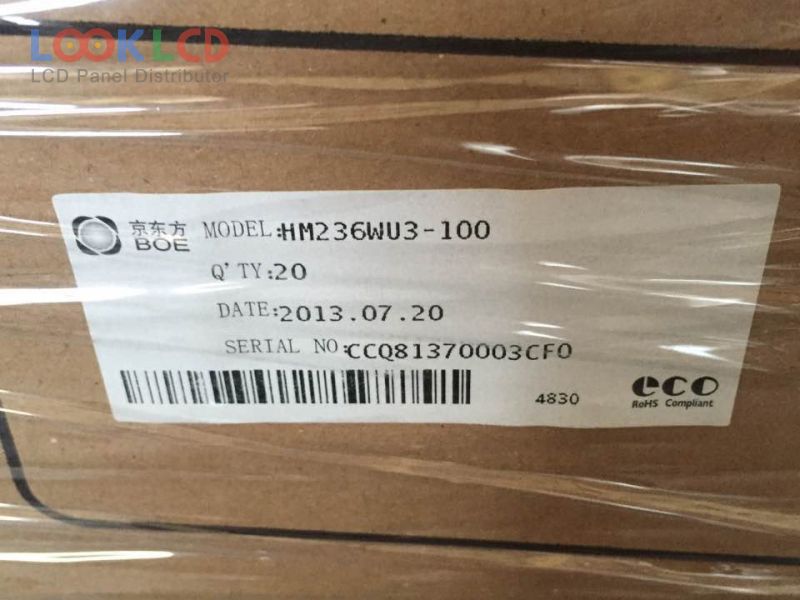

| Artikelnummer | HM236WU3-100 |
| varumärke | BOE |
| Storlek | 23.6 |
| Ansökan | DMPC |
| Upplösning | 1920×1080 |
| Sammansättning | CELL |
| Ljusstyrka | 0 |
| CR | 1000:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | No B/L |
| Gränssnitt | LVDS |
| panelmärke | BOE |
| panelmodell | HM236WU3-100 |
| paneltyp | a-Si TFT-LCD , CELL |
| panelstorlek | 23.6 inch |
| upplösning | 1920(RGB)×1080 , FHD |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 521.28×293.22 mm |
| skissera | 535.9×307 mm |
| yta | Antiglare (Haze 25%), Hard coating (3H) |
| transmissivitet | 5.3% (Typ.)(with Polarizer) |
| Kontrastförhållande | 1000:1 (Typ.) |
| visa färger | 16.7M (6-bit + Hi-FRC) |
| respons tid | 1.5/3.5 (Typ.)(Tr/Td) |
| betraktningsvinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signalgränssnitt | LVDS (2 ch, 8-bit), 30 pins |
| inspänning | 5.0V (Typ.) |
| Ansökan | DMPC |
