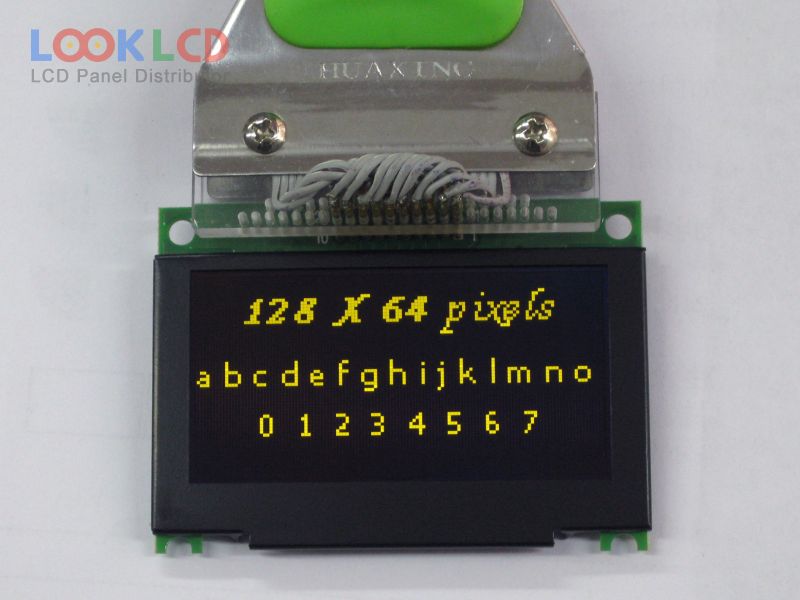

| Artikelnummer | HGS128645-Y-EH-LV |
| varumärke | Other |
| Storlek | 2.7 |
| Ansökan | IA |
| Upplösning | 128×64 |
| Sammansättning | OLED |
| Ljusstyrka | 100 |
| CR | 2000:1 |
| Färger | Mono(Yellow) |
| Bakgrundsbelysning | self |
| Gränssnitt | CPU/SPI |
| panelmärke | TSINGTEK |
| panelmodell | HGS128645-Y-EH-LV |
| paneltyp | PM-OLED , OLED |
| panelstorlek | 2.7 inch |
| upplösning | 128×64 |
| aktivt område | 61.41×30.69 mm |
| skissera | 75×53.5×7 mm |
| yta | |
| ljusstyrka | 100 cd/m² (Typ.) |
| Kontrastförhållande | 2000 : 1 (Min.) |
| visa färger | Mono(Yellow) |
| betraktningsvinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| drivrutin ic | Built-in SSD1325 |
| signalgränssnitt | 8-bit 6800/8080 parallel, SPI, 20 pins |
| inspänning | 3.3V (Typ.) |
| rohs: | |
| Ansökan | IA |
